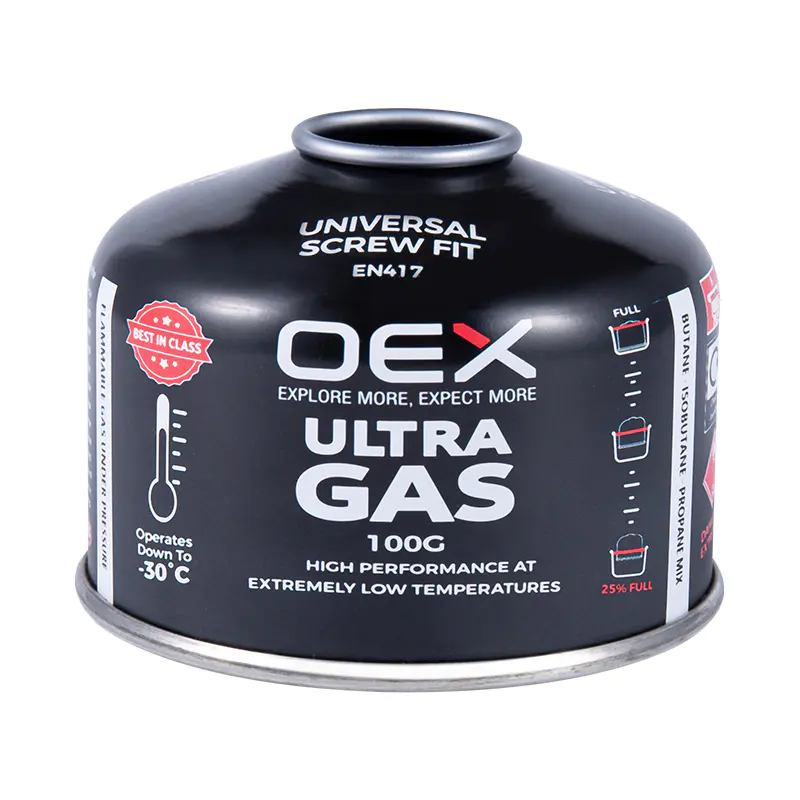

100g Gas Cartridge

SKU: B-100
Dimensions: Dia 86 * H 65 mm
Type: 2-pieces
Material: tinplate, 0.32+0.55mm
Production capacity: 15,000 pcs per day
Delivery time: 15 - 30 days

Bluefire manufactures various camping gas cartridges based on the standard EN417, the concave form of the base of the cartridges will reverse in form before any leak appears or rupture occurs when the internal pressure raise. This design and technology ensure the reliability of each cartridge.

Specification

SKU B-100 B-230 B-450 B-500

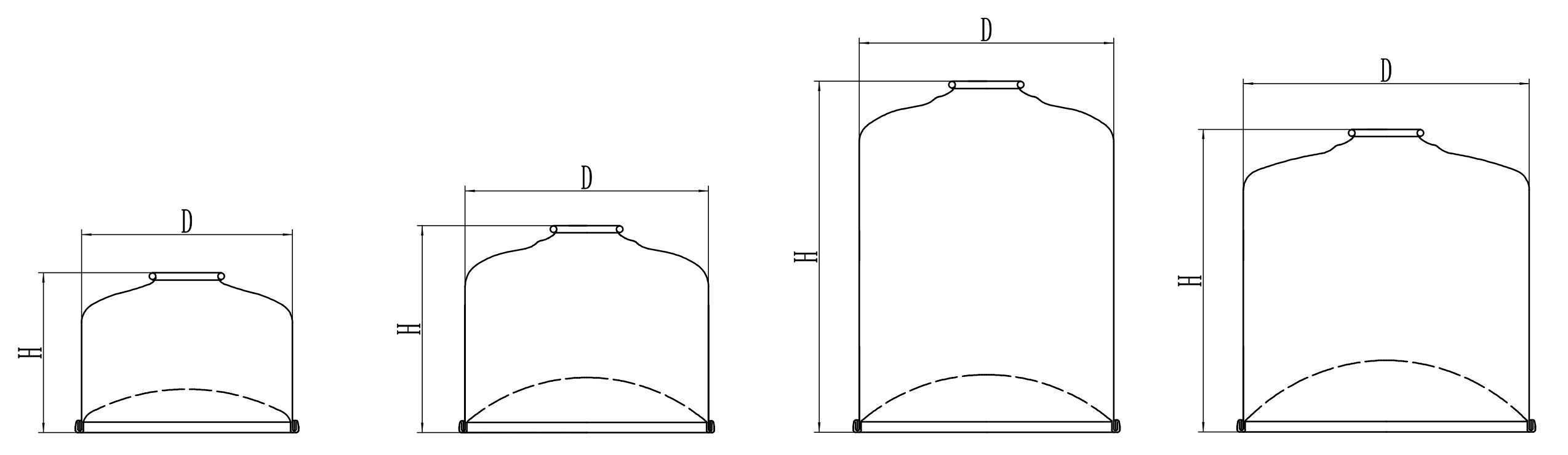

Drawing Camping gas cartridge drawings
Dimensions D = 86, H = 65 D = 106, H = 87.5 D = 106, H = 145 D = 118, H = 128
Gas weight 100 gram 230 gram 450 gram 500 gram
Material Tinplate Tinplate Tinplate Tinplate
Thickness of material 0.32 + 0.55 0.32 + 0.55 0.32 + 0.55 0.32 + 0.6
Water capacity 220 ml 495 ml 990 ml 1040 ml
Working pressure 12 bar 12 bar 12 bar 12 bar
Burst pressure 22 bar ≥ P ≥ 18 bar 22 bar ≥ P ≥ 18 bar 22 bar ≥ P ≥ 18 bar 22 bar ≥ P ≥ 18 bar
Standard GB13042-2008, EN417:2019 GB13042-2008, EN417:2019 GB13042-2008, EN417:2019 GB13042-2008, EN417:2019

Production and Delivery

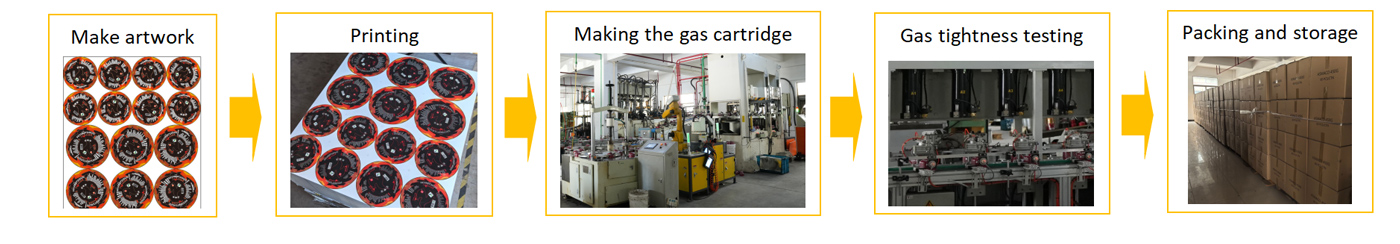

1.Production flow

2.How to place an order

2.1 OEM

Bluefire support OEM printing. At the same time, we will provide professional advice to ensure that your design is perfectly presented on the cartridge.

2.2 MOQ

Usually, the shipping of camping gas cartridges need to be by sea. Then the MOQ is a 20 GP container.

2.3 Mixed batch

Bluefire support the order with mixed cartridges, you can order different types of cartridges to fill a container, including various sizes and different designs.



Packaging and Shipping

SKU SKU B-100 B-230 B-450 B-500
Big carton Spec. 165 pcs/ctn
Ctn size: 63.5*41*31.5cm
80 pcs/ctn
Ctn size: 55.5*44*34.5cm
60 pcs/ctn
Ctn size: 55.5*44*43cm
60 pcs/ctn
Ctn size: 61.5*49*38cm
20GP 59,400 pcs 28,000 pcs 16,800 pcs 15,600 pcs
40GP 118,800 pcs 56,000 pcs 33,600 pcs 31,200 pcs
40HQ 140,250 pcs 65,600 pcs 39,600 pcs 36,000 pcs
Small box Spec. 24 pcs/box
Box size: 36.5 * 27.5 * 15.2 cm
24 pcs/box
Box size: 44.5 * 33 * 20 cm
12 pcs/box
Box size: 44.5 * 33 * 16.3 cm
12 pcs/box
Box size: 49 * 36.5 * 14.6 cm
20GP 47,040 pcs 24720 pcs 15,060 pcs 13,800 pcs
40GP 94,080 pcs 49440 pcs 30,120 pcs 27,600 pcs
40HQ 109,680 pcs 57840 pcs 35,040 pcs 32,160 pcs

Note: We support mixed batch processing and mixed container loading.

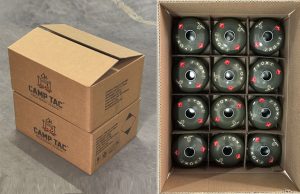

Big carton Samll box
source image 6 source image 6 768x496



Quality and Service

Quality control

1.1 Raw material control

  • Strictly control the qualifications of suppliers.
  • Establish and manage the technical file system of each material and assembly parts.
  • According to the incoming inspection procedures, each batch of raw materials must be subject to strict inspection. Any defective shall be returned or destroyed.
  • For each batch of qualified raw materials, a batch number is assigned. With the tracking system established, and the traceability from the finished product to the raw materials must be achieved.



1.2 Process Management

  • Optimize equipment and processes to enhance the reliability of the production line and minimize the rate of defective products.
  • Improve the precision of equipment and tools, and reduce all potential risks and instabilities.
  • We firmly believe that good products are manufactured, not by inspection.



1.3 Testing method and frequency

  • Automatic gas tightness testing: 100% full inspection
  • Manual inspection (gas tightness and visual inspection): 10 – 20 % sampling inspection

Service

OEM printing design

Bluefire have a professional design team that can assist in modifying your design to make it suitable for printing and more beautiful.

Calculate the quantities of mixed batch

Our salesperson will calculate the quantity of various cartridges based on your requirements and the printing ratio, ensuring that the containers can be fully filled while also meeting your needs.

Packaging and shipping solution

Bluefire will provide you with the most suitable packaging solutions based on your requirements, including cardboard boxes, plastic caps, tags, pallets, etc. Bluefire also has many years of rich experience of international logistics, which enables you to receive the goods quickly and safely.

Technical guidance of filling gas

Bluefire will guide buyers on how to correctly use our cartridges and valves, which gases to use, the gas capacity, the filling method, how to detect leaks, the dimensions standards for valve seals, and so on. And Bluefire could also assist in purchasing the filling line, related tools, etc.

Our Services

OurServices

bluefireservice01

Provide OEM/ODM services

Accept the printing artwork with your logo/brand. Bluefire can print your designs on camping gas cartridges and refrigerant cans. ­We have professional designers who can optimize your design drafts for you, and also design beautiful printed artworks for you individually. We can provide professional suggestions, to convert your artwork and ideas into suitable artworks for printing, and finally printing them perfectly on camping gas cartridges and refrigerant cans. OEM cans with special dimensions For the special requirements of our customers, we can customize special-sized cans. The diameters of the 230g and 450g camping gas cartridges are 106mm. A can was customized with a diameter of 100mm for a UK customer. If you need cans with specific diameter or height, we have professional engineers who can design and manufacture it for you. The diameter of the refrigerant cans is usually 66mm and 73mm. Special height can be customized for you. For example, the height of a 66mm can could be from 120mm to 240mm. Our advantage is our good technical capabilities and short R&D cycle. OEM valve with special thread/tube ­The thread specifications for our female valves are usually 7/16’-28 and 1/2’-16 acme. We have ordered many special threads for customers, such as 3/8’-24, 7/16’-28, etc., and both right-hand and left-hand threads can be produced. If you require a specific thread specification, Bluefire is the optimal choice. ­The female threaded valve can also be equipped with a pipe. The pipes usually has two purposes: a liquid introduction pipe or a positioning pipe. Different uses and lengths can all be customized according to your needs. Bluefire has the strong technical capabilities and unique thread processing technology, which can perfectly meet your customization requirements. .oem-layout{ text-align:left; }.oem-layout .row{ margin-left:0; margin-right:0; }.oem-card{border:1px solid #d9d9d9;border-radius:4px;background:#fff;padding:28px 30px;height:100%;}.oem-card h2{font-size:20px;font-weight:700;color:#1a1a1a;margin:0 0 14px;line-height:1.35;}.oem-card p{ margin:0 0 14px; font-size:15px; line-height:1.75; color:#333; }.oem-intro{ margin-bottom:16px !important; }.oem-list{ margin:0; padding:0; list-style:none; }.oem-list li{position:relative;padding-left:18px;margin-bottom:14px;font-size:15px;line-height:1.75;color:#333;}.oem-list li:last-child{ margin-bottom:0; }.oem-list li:before{content:"";position:absolute;left:0;top:11px;width:5px;height:5px;border-radius:50%;background:#111;}.oem-hl{ color:#c8102e; font-weight:600; }.oem-media{display:flex;align-items:center;justify-content:center;height:100%;padding:10px 0;}.oem-media img{max-width:100%;height:auto;border-radius:6px;display:block;}@media (max-width:991.98px){.oem-media{ margin-top:20px; }.oem-list li{ margin-bottom:12px; }}
Learn More
bluefireservice02

Supply chain and Production capacity Production line

Production line   Valve Gas cartridge Refrigerant can Production process     Production capacity   Item Production line Daily production capacity Annual production capacity Valve 3 150,000 pcs 40 million pcs Gas cartridge 2 20,000 pcs 6 million pcs Refrigerant can 2 20,000 pcs 6 million pcs
Learn More
bluefireservice03

How to ensure the quality

Raw material control Strictly control the qualifications of suppliers. Establish and manage the technical file system of each material and assembly parts. ­According to the incoming inspection procedures, each batch of raw materials must be subject to strict inspection. Any defective shall be returned or destroyed. ­For each batch of qualified raw materials, a batch number is assigned. With the tracking system established, and the traceability from the finished product to the raw materials must be achieved. Process Management ­Optimize equipment and processes to enhance the reliability of the production line and minimize the rate of defective products. ­Improve the precision of equipment and tools, and reduce all potential risks and instabilities. ­We firmly believe that good products are manufactured, not by inspection. Testing methodand frequency Valve testing: ­Automatic gas tightness testing: 100% full inspection ­Automatic optical inspection by cameras: 100% full inspection ­Manual inspection (gas tightness and visual inspection): 10 – 20 % sampling inspection Can testing (gas cartridge and refrigerant can): ­Automatic gas tightness testing: 100% full inspection ­Manual inspection (gas tightness and visual inspection): 10 – 20 % sampling inspection Our quality service ­Provide the product inspection report ­Support third-party testing The traceability of raw materials is under investigation
